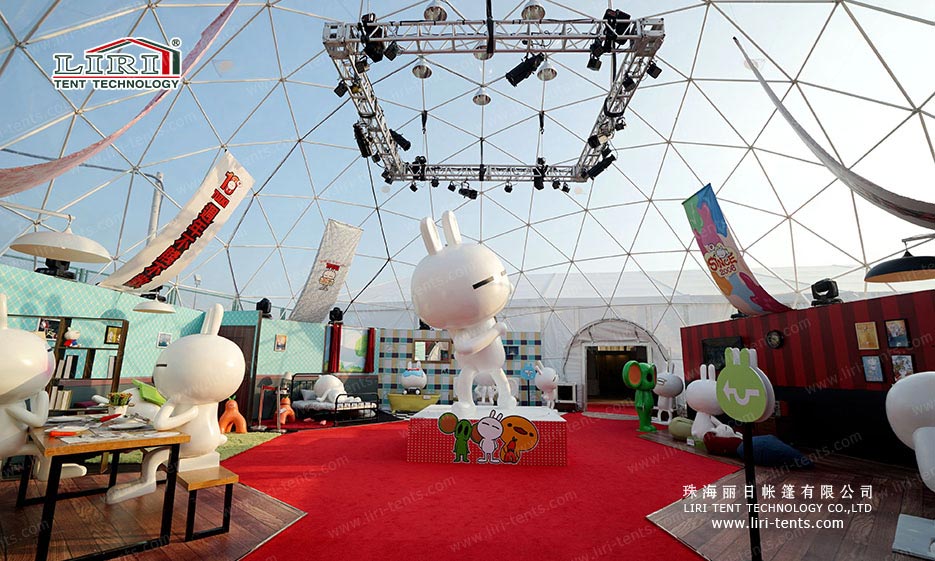

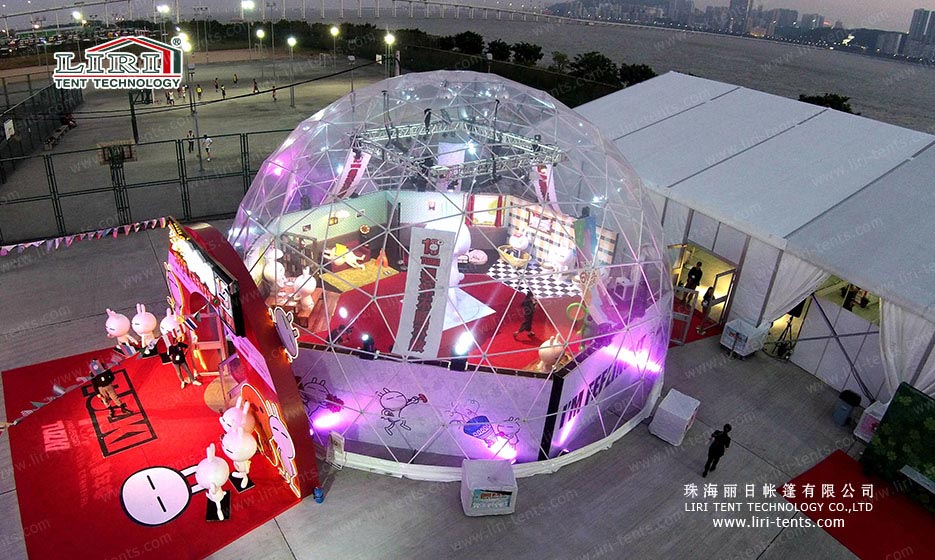

The picture above is just a small geodesic dome tent.
Half Sphere Tent has been called “the most spacious, lightest, most effective design”, which is a rigid and stable structure.
Half Sphere Tent is made of special high-strength steel tube with zinc plated or painted. The roof cover adopts PVC fabric. The half sphere tent structure sizes are 5m, 8m, 10m, 15m, 20m, 25m, 30m.
Various options for configurations for half sphere tent are available to make its function and uses more power. For example air conditioning, floor, ceiling interior, glass doors, transparent fabric, and wall, etc.
Its unique and beautiful shape, variety fabric design style makes half sphere tent the first choice for high-end users who advocate high-quality events. Half sphere tent creates the perfect solution to make your event special. Half sphere design is widely used in various events, large-scale exhibitions, celebrations, outdoor activities.
| Diameter | Ceiling Height | Floor Area | Volume | Steel framework | Membrane |
|---|---|---|---|---|---|
| 3m | 2.3m | 7.1m² | 10.7m³ | 214kg / 0.7x0.4x0.25m | 19kg / 1.0x1.0x0.1m |
| 4m | 2.38m | 12.6m² | 21.5m³ | 220kg / 0.95x0.4x0.2m | 29kg / 1.0x1.0x0.1m |
| 5m | 2.9m | 19.6m² | 32.7m³ | 338kg / 1.1x0.5x0.3m | 46kg / 1.0x1.0x0.2m |
| 6m | 3m | 28.3m² | 56.5m³ | 460kg / 1.1x0.7x0.6m | 55kg / 1.2x1.0x0.3m |
| 7m | 3.5m | 38.5m² | 90m³ | 526kg / 1.2x0.7x0.6m | 74kg / 1.2x1.0x0.4m |
| 8m | 4m | 50.2m² | 134m³ | 530kg / 1.4x0.7x0.6m | 94kg / 1.3x1.0x0.4m |
| 9m | 4.5m | 63.6m² | 191m³ | 660kg / 1.5x0.7x0.6m | 121kg / 1.5x1.5x0.35m |
| 10m | 5m | 78.5m² | 262m³ | 720kg / 1.7x0.7x0.8m | 150kg / 1.5x1.0x0.35m |
| 11m | 5.5m | 95m² | 348m³ | 780kg / 1.9x0.7x0.9m | 180kg / 1.6x1.1x0.4m |
| 12m | 6m | 113m² | 452m³ | 1240kg / 2.0x0.7x1.0m | 220kg / 1.6x1.2x0.4m |
| 13m | 5.82 | 132.7m² | 545m³ | 1520kg / 1.9x0.8x1.0m | 220kg / 1.6x1.2x0.5m |
| 14m | 6.27m | 153.9m² | 685m³ | 1800kg / 2.0x0.8x1.0m | 264kg / 1.6x1.2x0.5m |
| 15m | 6.72m | 176.6m² | 845m³ | 1910kg / 2.1x0.8x1.0m | 220kg / 1.6x1.2x0.6m |
| 16m | 7.16m | 201m² | 1030m³ | 2020kg / 2.2x0.8x1.0m | 346kg / 1.6x1.2x0.7m |
| 17m | 8.5m | 226.9m² | 1285m³ | 2810kg / 2x（2.0x0.7x0.7）m | 430kg / 2x（1.3x1.0x0.5）m |
| 18m | 9m | 254.3m² | 1525m³ | 2950kg / 3x（2.0x0.6x0.7）m | 480kg / 4x（1.4x0.7x0.5）m |
| 19m | 9.5m | 283.4m² | 1795m³ | 3090kg / 3x（2.0x0.6x0.7）m | 530kg / 4（1.4x0.7x0.5）m |
| 20m | 10m | 314m² | 2090m³ | 3840kg / 4x（2.3x0.7x0.5）m | 595kg / 4x（1.5x0.7x0.6）m |
| 21m | 10.5m | 346.2m² | 2420m³ | 4000kg / 4x（2.4x0.7x0.5）m | 650kg / 4x（1.5x0.7x0.6）m |
| 22m | 11m | 379.9m² | 2785m³ | 4170kg / 4x（2.5x0.7x0.6）m | 715kg / 4x（1.5x0.7x0.7）m |
| 23m | 11.5m | 415.3m² | 3180m³ | 3460kg / 4x（2.6x0.7x0.5）m | 780kg / 4x（1.5x0.6x0.7）m |
| 24m | 12m | 452.2m² | 3615m³ | 4510kg / 5x（2.7x0.6x0.6）m | 850kg / 4x（1.5x0.8x0.8）m |
| 25m | 12.5m | 490.6m² | 4090m³ | 7000kg / 8x（3.0x0.6x0.4）m | 925kg / 5x（1.5x0.7x0.7）m |
| 30m | 13m | 706.5m² | 5744m³ | 8970kg / 8x（3.2x0.6x0.6）m | 1320kg / 6x（1.3x0.6x0.7）m |
| 35m | 14m | 961m² | 8170m³ | 10400kg / 3x（3.3x1.0x1.0）m | 1475kg / 6x（1.3x0.8x0.8）m |
| 40m | 15m | 1256m² | 11191m³ | 11820kg / 8x（3.5x1.0x1.0）m | 1840kg / 6x（1.3x0.9x0.9）m |
| 45m | 18m | 1589.6m² | 17367m³ | 17000kg / 6x（2.9x1.0x1.0）m | 2250kg / 6x（1.3x1.0x1.0）m |
| 50m | 20m | 1962.5m² | 23823m³ | 28000kg / 13x（2.5x1.0x1.0）m | 2770kg / 8x（1.3x1.0x1.0）m |
| 55m | 22m | 2374.6m² | 21710m³ | 38000kg / 18x（2.3x1.0x1.0）m | 3600kg / 8x（1.3x1.0x1.0）m |
| 60m | 25m | 2826.0m² | 43524m³ | 48000kg / 26x（2.2x1.0x1.0）m | 4200kg / 8x（1.3x1.0x1.0）m |
